RTSR Series
RTSR-309 Shell ＆ Tube Finned Tube Bundle
Product Groups
Shell ＆ Tube Finned Tube Bundle
Product Groups
Shell & Tube Finned Tube Bundle
Cooling Medium
Water
Application
Industrial
Technology
Copper tube/ Aluminum Fin
Product Details

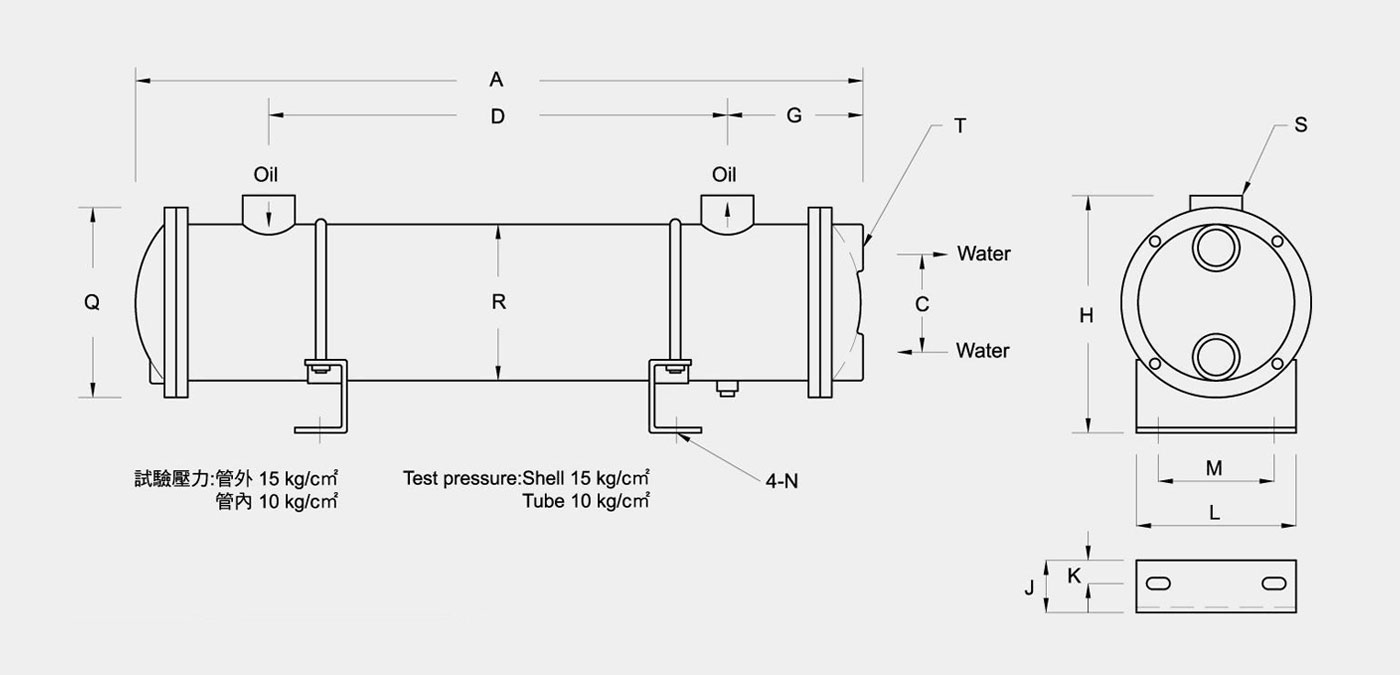

Dimensions
| Model | A | C | D | G | H | J | K | L | M | N | Q | R | S | T | Weight KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RTSR-309 | 761 | 44 | 586 | 97 | 156 | 32 | 15 | 115 | 58 | 11X20 | 123 | 88.7 | 1” | 3/4” | 12 |
Technical Data
| Model | Flow Rate l/min. |
Cooling Kcal/h |
Cooling Water L |
Oil Outlet °C |
Water Inlet °C |
Oil Pressure Loss kg/cm² |
Water Pressure Loss kg/cm² |
|---|---|---|---|---|---|---|---|
| RTSR-309 | 5~90 | 9000~13000 | 60L/min. | 50 | 30 | 0.3~1 | 0.1~0.3 |
Features
- High efficiency thread-rolling tube
- Moderate heat removal
- Turbulence design
- Short lead time
- Good for freshwater (Seawater for option)
Product options and tailored service
- Connections (PT/NPT/BSPP Port size and types)
- Tubes for seawater
Materials
- Tubes: Copper
- Shell Core: Carbon steel
Cooling capacity
