RTSR Series
RTSR-10180 Shell ＆ Tube Finned Tube Bundle
Product Groups
Shell ＆ Tube Finned Tube Bundle
Product Groups
Shell & Tube Finned Tube Bundle
Cooling Medium
Water
Application
Industrial
Technology
Copper tube/ Aluminum Fin
Product Details

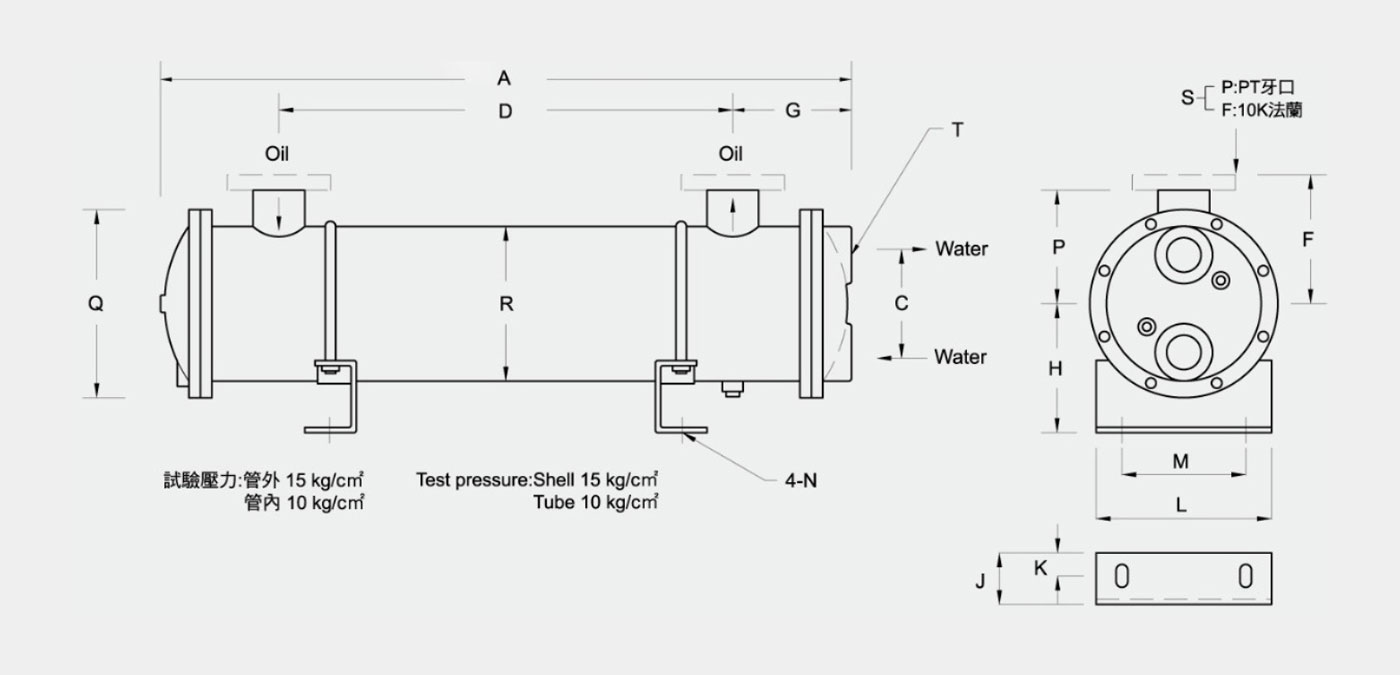

Dimensions
| Model | A | C | D | F | G | H | J | K | L | M | N | P | Q | R | S | T | Weight KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RTSR-10180 | 1480 | 120 | 1080 | 220 | 215 | 215 | 70 | 35 | 320 | 200 | 15x25 | 175 | 325 | 267 | 10K3B | PT2 | 176 |
Technical Data
| Model | Flow Rate l/min. |
Cooling Kcal/h |
Cooling Water L |
Oil Outlet °C |
Water Inlet °C |
Oil Pressure Loss kg/cm² |
Water Pressure Loss kg/cm² |
|---|---|---|---|---|---|---|---|
| RTSR-10180 | 200~900 | 115000~155000 | 200L/min. | 50 | 28 | 0.3~1 | 0.1~0.3 |
Features
- High efficiency thread-rolling tube
- Moderate heat removal
- Turbulence design
- Short lead time
- Good for freshwater (Seawater for option)
Product options and tailored service
- Connections (PT/NPT/BSPP Port size and types)
- Tubes for seawater
Materials
- Tubes: Copper
- Shell Core: Carbon steel
Cooling capacity
