Pressure Gauge

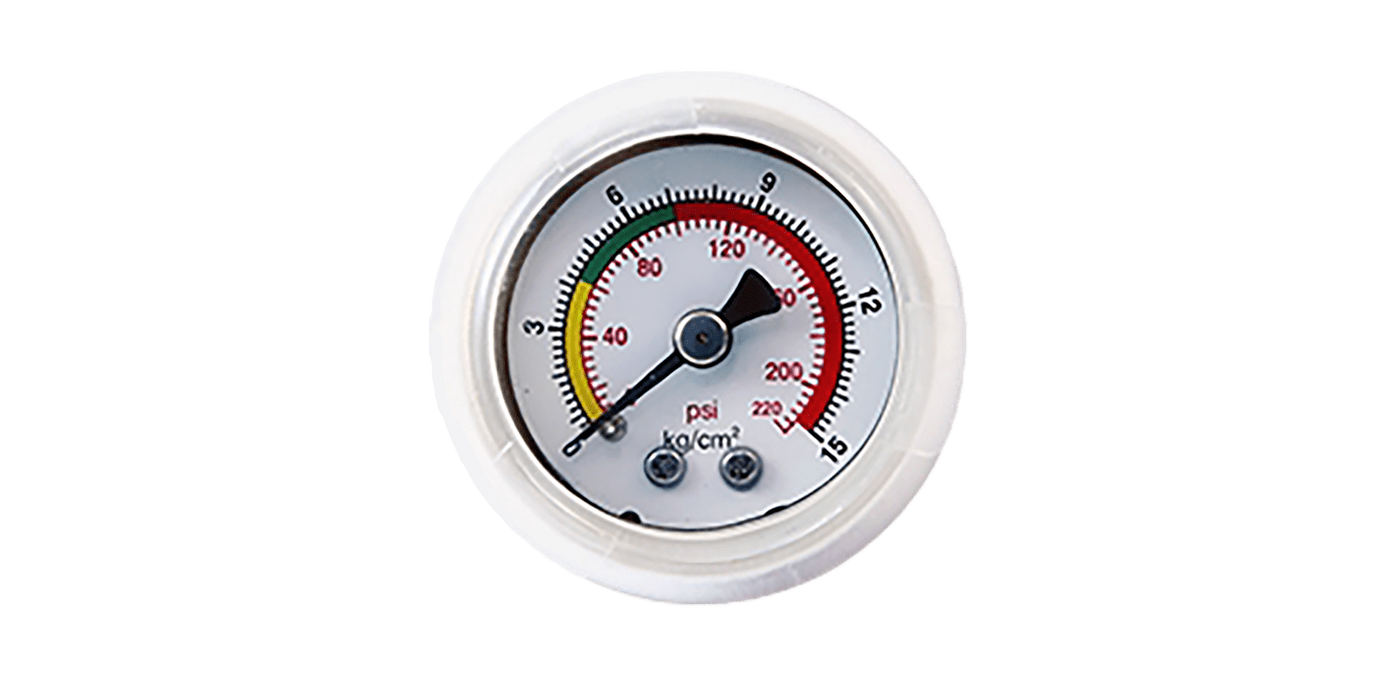

Embedded all-plastic PP oil-filled pressure gauge Accessories
Product Groups
Accessories
Product Groups
Accessories
Application
Hydarulic System
Product Information
A world-first fully plastic PP material, integrally molded, oil-filled pressure gauge. Suitable for use in non-corrosive gas and fluid environments such as oil, water, and air. Primarily used in environments with frequent pressure fluctuations and intense vibrations. It features a safe structure and allows for quick installation.
| Size table | Accuracy | Work Temperture | Pressure Range | Temperature | Movement | Bourdon Tube | Case | Upper Ring | Window | Connection | Connection Size | Dial | Pointer | Filling |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40mm(1.5”) | ±0.5~3% F.S.D | -76-0cmHg~-76-30 kg/cm² | Max work temp. 100℃ | -25℃ ～60℃ | Brass | Brass | PP | PP | PP | PP | 12mm,-1/8"PT.7/16”UNF,¼” quick connector | Aluminium in white | Aluminium in black | 99.7％ Glycerin 100# silicone oil 1000# silicone oil |
