OA Series

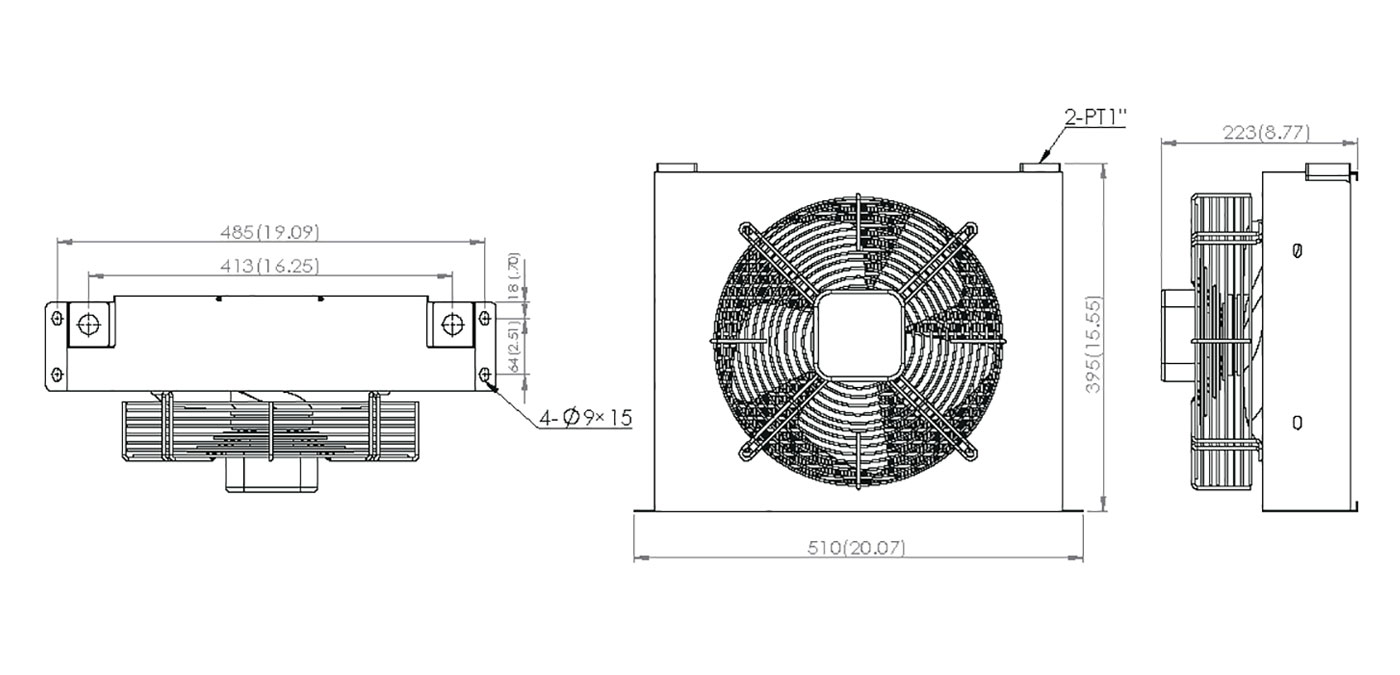

OA485 Fin Fan Cooler

JBoxSide
Port Size1” PT
Product Groups

Fin Fan Cooler

Product Groups

Fin Fan Cooler

Cooling Medium

Air / Water / Oil

Application

Industrial

Technology

Copper tube/ Aluminum Fin

Product Details

Technical Data

Item Oil Flow
l/min.
Voltage V Frequency Hz Current Absorption A Power W RPM r/min. Air Flow CFM Noise dB Certificate
OA485-A2 20~100 3ø220V 50/60 0.45/0.40 80/100 1380/1550 1563/1876 58 CE/CCC
OA485-A3 20~100 3ø380V 50/60 0.25/0.23 80/100 1380/1550 1664/1997 58 CE/CCC
OA485-D1 20~100 DC12V   2.752 32.9 2363 2000 56 CE/CCC
OA485-D2 20~100 DC24V   1.364 32.9 2514 2000 60 CE/CCC

Features

  • Compact unit, low cost and ESG approved
  • Moderate heat removal
  • Turbulence design
  • Good for medium flow rates
  • Filter

Product options and tailored service

  • Connections (PT/NPT/SAE Port size and types)
  • Voltages
  • Painting Color(Silver/Black)
  • Special Treatment- EPD technology
  • Tailored Pass Design
  • Filter removal design
  • Internal pressure bypass

Materials

  • Tubes: Aluminum
  • Fins: Aluminum
  • Fan Blade: PBT+glass fiber
  • Fan Guard: Chrome plated steel

Performance

Performance

Pressure drop

Pressure drop
