Basic Information
| Unit | Motor Type | Motor Model | Voltages(V) | Frequency(Hz) | Input(W) | Current(A) | Speed(rpm) | Air Flow 20Pa (m³/h)) | Noise(dBA) | Capacitor(μF/250V) | Rotation | Insulation Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Axial fan motor | Single phase motor with capacitor | YWF-2SP-300SC | 220 | 50/60 | 145/175 | 0.66/0.80 | 2300/2300 | 1830/2030 | 63 | 4 | Counterclockwise (from end-shield view) | B |
| Motor Protection | Temperature Rise | Protection Rating | Operating Type | Ambient Temperature | Bearings | Mounting | Electrical Connection | Apprvoals | Net Weight/Gross Weight(Kg) | Packing Dimensions(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Thermocontact 135±5°C | Max within 75K | IP54 | S1 | -30°C~60°C | Ball bearings | Vertical or horizontal | Lead wire silicon 4G 0.50mm2, length 100mm in terminal box | CE | 3.0/4.0 | 340*340*180 |

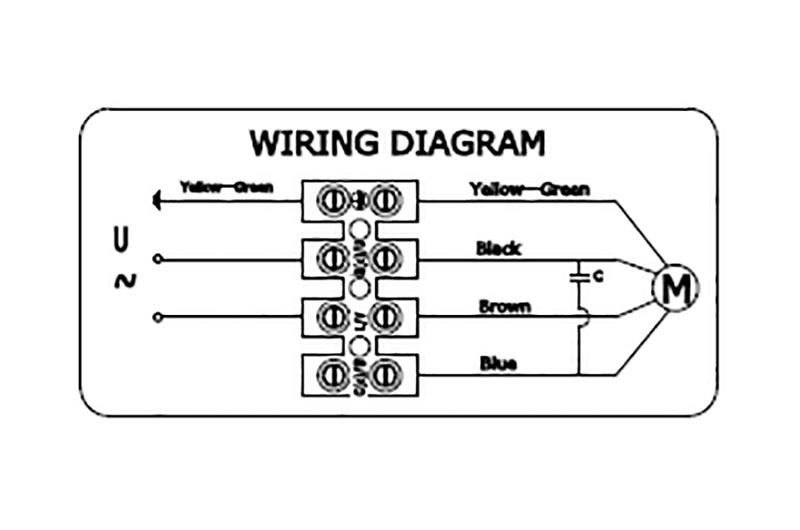

Wiring Diagram
